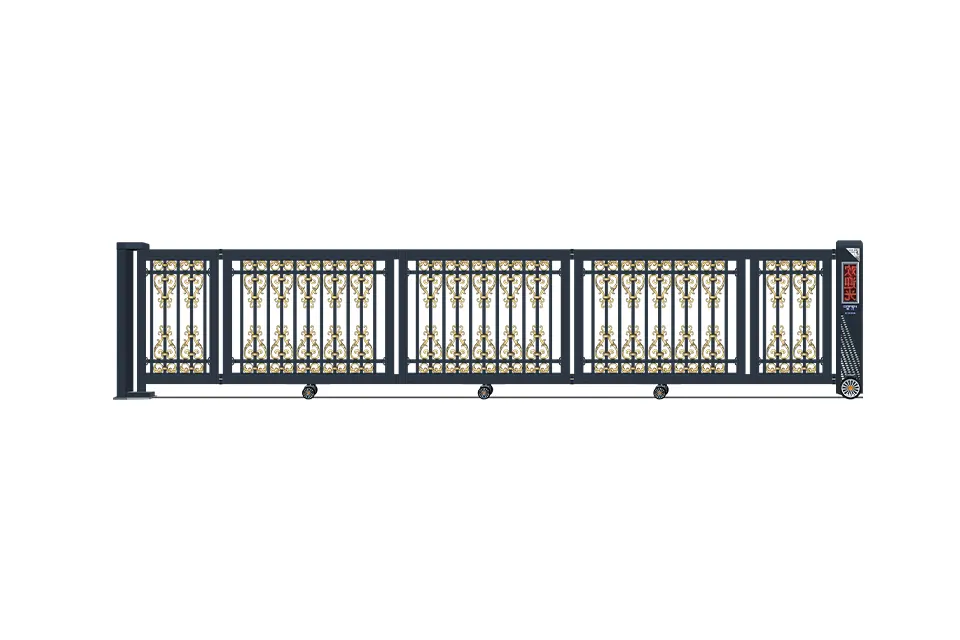

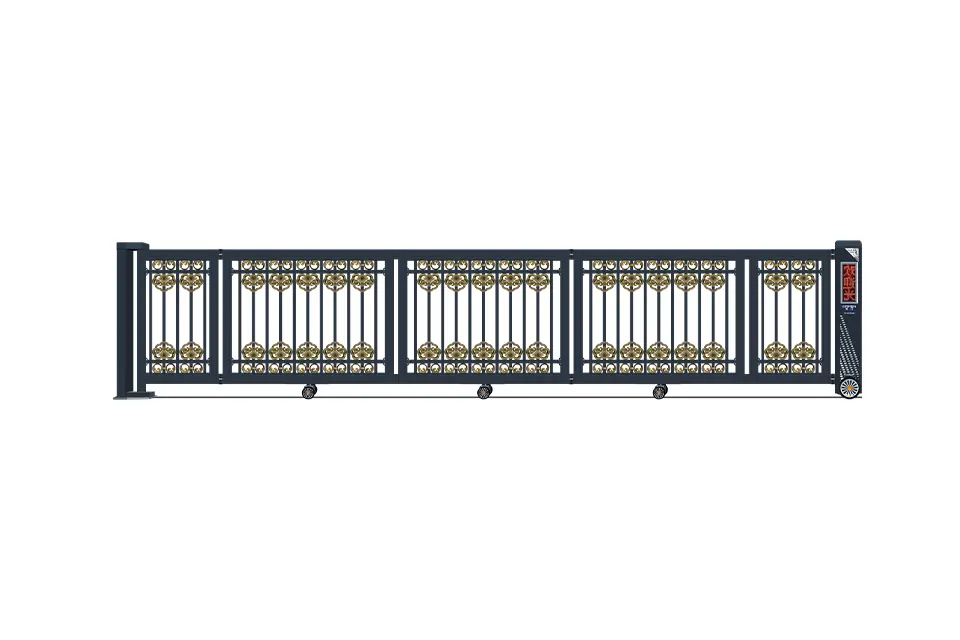

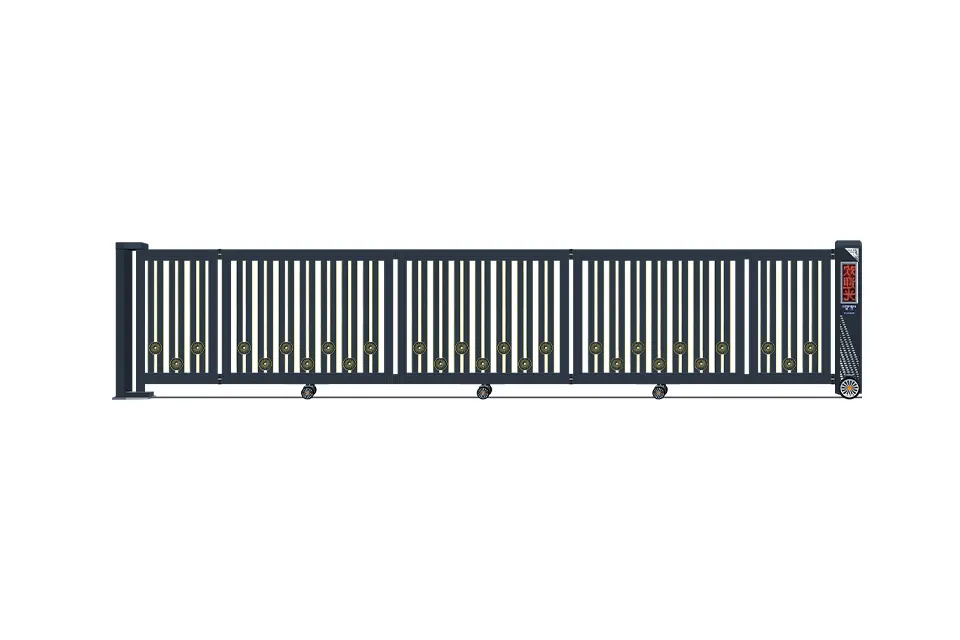

Bifolding Gate CMZS-1905

The Yard Collapsible Gate functions as a contemporary space-effective entrance solution that combines safety measures with convenience aspects alongside functional efficiency and design elements. Individuals with space-constrained outdoor areas such as villa entranceways and driveways or commercial locations should consider using this collapsible gate because it possesses a folding design that enables it to roll neatly into the wall while being opened. The gate makes use of high-quality aluminum alloy material that delivers both durable performance and adjustable design features for a wide range of architectural and functional requirements.

Key Features:

Efficient Space Utilization

The collapsible gate consumes little room to the side while providing entrance or exit capability because of its folding design thus it works best in tight spaces.

After opening the gate it collapses against the wall so that extra space outside the entrance becomes unnecessary while still providing easy access around the opening.

Strong Aesthetic Appeal

Property owners can personalize the gate by customizing its measurements and colors together with patterns as well as options for using transparent glass or decorative designs.

The gate functions well with numerous architectural styles thus it beautifies properties of different time periods from modern to classic.

Convenient Opening Mechanism

The operational mechanism of the gate creates a wide opening that enables quick and easy access for sizable objects as well as the simultaneous passage of multiple individuals.

This engineering solution works perfectly for warehouse operations by allowing forklift traffic and extends directly toward safe emergency fire evacuations.

Safety and Stability

The gate structure has aluminum alloy profiles with a mortise and tenon assembly that provides durability and maintains stability throughout its lifespan.

The Anti-Pinch Sensor includes an optional safety feature which detects obstacles when the gate is closing thus it automatically stops to prevent injuries from pinching and subsequent damage.

Applications:

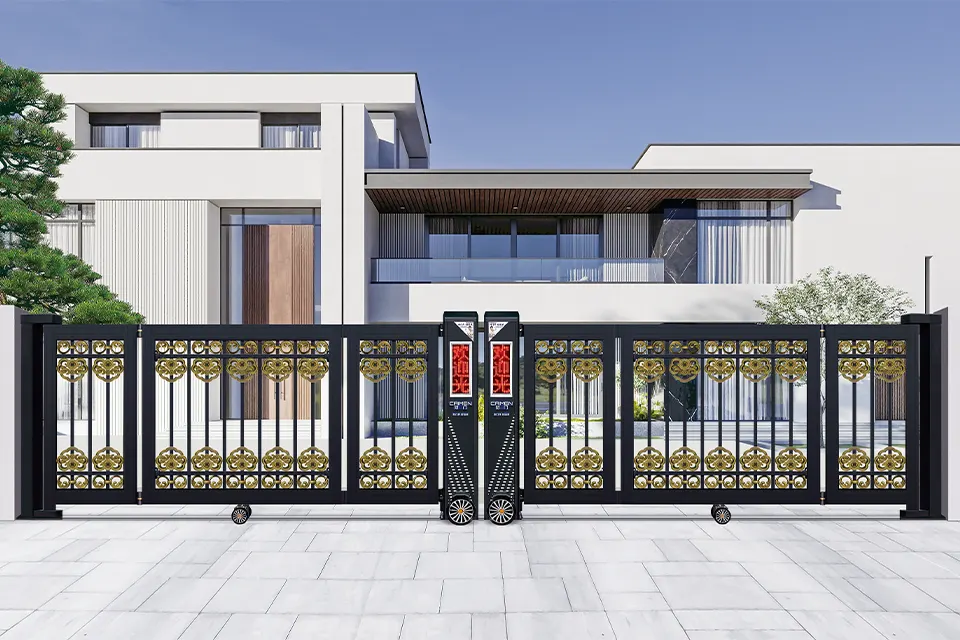

• Villa entrances and driveways
• Commercial properties with limited space
• Industrial sites consisting of warehouses as well as logistics centers and facilities require the installation of these gates.
• Emergency exits or high-traffic areas

Optional Add-ons:

• Compatible with automation systems for remote control and smart home integration.
• Security gets enhanced with additional locking systems coupled to alarm systems for maximum protection.
• The application of decorative patterns custom motifs and laser-cut design elements as architectural style-specific decorative elements.

1. Caimen independently develops built-in shaft

The self-developed built-in gate shaft is engineered to support an impressive weight capacity of 5,000 to 10,000 KG, ensuring the gate folds smoothly, quietly, and with exceptional stability. Unlike traditional support shafts, this innovative design reduces wear by 60% and extends the service life by 3 times, delivering unmatched reliability and durability.

Additionally, the precision-cast top shaft, manufactured using high-precision machine tools, is designed to withstand high temperatures, operate with minimal noise, and maintain long-lasting performance. Its robust construction ensures a durable and reliable solution, significantly enhancing the gate's overall functionality and lifespan..

2. Caimen independently designs and develops built-in shafts

The self-developed built-in gate shaft is engineered to support an impressive weight capacity of 5,000 to 10,000 KG, ensuring the gate folds smoothly, quietly, and with exceptional stability. This innovative design eliminates noise and shaking, providing a seamless and reliable operation. Compared to traditional support shafts, it reduces wear by 60% and extends the service life by 3 times, delivering unmatched durability and performance.

Complementing this is the precision-cast bottom shaft, a product of independently developed patented technology. Featuring 4-layer protection, it ensures stable operation and can also withstand a weight of 5,000 to 10,000 KG. Together, these advanced components provide a robust, long-lasting, and highly efficient gate system designed for superior performance and reliability.

Caimen independently develops the hinge shaft, crafted from 304 stainless steel and precision-cast at 1500℃. This high-quality material ensures exceptional wear resistance, rust-proofing, and anti-oxidation properties, making it ideal for long-term use in demanding environments.

The hinge shaft features a tight connection between the 304 stainless steel ball and the bearing, ensuring smooth, flexible, and quiet gate operation. Additionally, the high-strength, thickened 40mm hinge provides robust load-bearing capacity, preventing deformation and enhancing durability. This innovative design guarantees reliable performance and extended service life for your gate system.

1. Folding guide system

Caimen independently develops practical patented technology to achieve integrated double 90° opening and closing of two gate rows, which is quieter and safer.

2. Safe power transmission system

The folding gate safety power supply transmission system is designed for reliability and durability, combining 304 stainless steel hose and Caimen customized wires. This system is rust-proof, retractable, and flexible, allowing it to bend without damaging the wires, ensuring long-lasting performance.

304 Stainless Steel Hose: Constructed from high-quality 304 stainless steel, this hose serves as a protective tube for wires, cables, and automation instrument signals. It is widely used for sensor line protection in precision optical rulers and industrial applications. The hose offers excellent flexibility, corrosion resistance, high-temperature resistance, wear resistance, and tensile strength, making it ideal for demanding environments.

Caimen Customized 4-Core Wire: Made from 99.99% oxygen-free pure copper, it delivers superior conductivity and efficiency, ensuring stable power transmission.

Caimen independently develops the hinge shaft, which is made of 304 stainless steel and cast at 1500℃. It is wear-resistant, rust-proof and anti-oxidation. The tight connection between the 304 stainless steel ball and the bearing effectively ensures smooth, flexible and quiet gate opening. The high-strength and thickened 40mm hinge has strong load-bearing capacity, is not easy to deform and is durable.

1. Folding guide system

Caimen has independently developed practical patented technology that enables the integrated double 90° opening and closing of two gate rows. This innovative design ensures smoother, quieter, and safer operation, providing a seamless and reliable performance for folding gates. By integrating this advanced mechanism, Caimen enhances both the functionality and safety of its gate systems, making them ideal for modern residential and commercial applications.

2. Safe power transmission system

The folding gate safety power supply transmission system consists of 304 stainless steel hose and Caimen customized wires, which are rust-proof, retractable and can be bent without damaging the wires.

Caimen customized 4-core wire: 99.99% oxygen-free pure copper wire

304 stainless steel hose: The material is 304 stainless steel and is used as wire and cable protection tube for wires, cables, and automation instrument signals. It is mainly used for sensor line protection of precision optical rulers and industrial sensor line protection. It has good softness, corrosion resistance, high temperature resistance, wear resistance, and tensile resistance.

Infrared warning light and voice reminder

The warning light provides important safety functions. It is a high-brightness flash mode reminder when the vehicle enters and exits the switch. The lampshade of the warning light is designed using the diamond principle, with strong light refraction. It is made of PC material, which is hard, shock-proof and drop-resistant. The material is not easy to fade, and is waterproof and dustproof. The voice engineer professionally customizes the warning voice with clear sound quality.

Infrared anti-collision

Infrared transmitting and receiving sensors are set at the corresponding positions on the outer sides of the gate pillars on both sides. When the gate is closing, if people, vehicles or objects pass between the infrared transmitter and the receiver, the gate will stop running and return automatically.

New leakage protection plug

Once the leakage current reaches 10 mA, the power supply will be automatically cut off immediately, and the reaction time is less than 0.1 second. The whole is made of flame-retardant engineering plastic, which is resistant to high temperature and ensures safety.

Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

New leakage protection plug

Once the leakage current reaches 10 mA, the power supply will be automatically cut off immediately, and the reaction time is less than 0.1 second. The whole is made of flame-retardant engineering plastic, which is resistant to high temperature and ensures safety.

Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

The motor has a compact structure and stable performance. It has a large starting torque and can adapt to frequent forward and reverse rotation. It has an embedded thermal protection device to extend the service life of the gate opener. It has good self-locking performance and can be manually released to realize manual opening and closing of the gate. It can work normally in a low temperature environment of -20℃.

5 Advantages

1. Soft brake                         2. Soft start
3. Motor self-locking           4. Manual clutch
5. Overload protection
