Bifolding Gate CMZD-1902
A premium space-efficient product called the Villa Folding Gate provides both aesthetic appeal and security performance as its main features for contemporary villa settings. The gate exists in three different material varieties including stainless steel, aluminum and wrought iron which create an elegant object that withstands the test of time. This gate type folds seamlessly because of its operational design which makes it practical for driveways along with entrances and garden paths where optimized space utilization is needed.
Key Features:
- A properly designed folding system enables this gate to occupy minimum available area once opened which makes it ideal for compact properties.
- The products use tough components that maintain their performance quality during severe weather conditions.
- The product offers multiple design choices including finish options and color options which enable customers to match their villa architecture precisely.
- These gates feature robust locking systems together with security automation as an optional feature and safety measure.
- The entrance operates easily because it combines high-quality hinges and tracks to deliver smooth movements.
- The material shows resistance to rust and corrosion which means it needs minimal maintenance.
Applications:
- Main entrances to villas
- Driveways and garages
- Garden or patio enclosures
Optional Add-ons:
- Automation: Motorized operation with remote control or smartphone integration.
- Decorative Elements: Laser-cut patterns, ornamental designs, or personalized motifs.
- Security features: Security features involve peripheral systems with advanced locking mechanisms and smart home subsystem integration.
1. Caimen independently develops built-in shaft
The self-developed built-in gate shaft can bear a weight of 5000-10000KG, and the gate body folds smoothly, stably, reliably, without noise or shaking. Compared with traditional support shafts, wear is reduced by 60% and the service life is increased by 3 times.
Precision casting top shaft, made by high-precision machine tools, has the characteristics of high temperature resistance, low noise, durability and long service life.
2. Caimen independently designs and develops built-in shafts
The self-developed built-in gate shaft can bear a weight of 5000-10000KG, and the gate body folds smoothly, stably, reliably, without noise or shaking. Compared with traditional support shafts, wear is reduced by 60% and the service life is increased by 3 times.
Precision casting bottom shaft, independently developed practical patented technology. 4-layer protection, stable operation, can withstand a weight of 5000-10000kg.
Caimen independently develops the hinge shaft, which is made of 304 stainless steel and cast at 1500℃. It is wear-resistant, rust-proof and anti-oxidation. The tight connection between the 304 stainless steel ball and the bearing effectively ensures smooth, flexible and quiet gate opening. The high-strength and thickened 40mm hinge has strong load-bearing capacity, is not easy to deform and is durable.
1. Folding guide system
Caimen independently develops practical patented technology to achieve integrated double 90° opening and closing of two gate rows, which is quieter and safer.
2. Safe power transmission system
The folding gate safety power supply transmission system consists of 304 stainless steel hose and Caimen customized wires, which are rust-proof, retractable and can be bent without damaging the wires.
Caimen customized 4-core wire: 99.99% oxygen-free pure copper wire
304 stainless steel hose: The material is 304 stainless steel and is used as wire and cable protection tube for wires, cables, and automation instrument signals. It is mainly used for sensor line protection of precision optical rulers and industrial sensor line protection. It has good softness, corrosion resistance, high temperature resistance, wear resistance, and tensile resistance.
Caimen independently develops the hinge shaft, which is made of 304 stainless steel and cast at 1500℃. It is wear-resistant, rust-proof and anti-oxidation. The tight connection between the 304 stainless steel ball and the bearing effectively ensures smooth, flexible and quiet gate opening. The high-strength and thickened 40mm hinge has strong load-bearing capacity, is not easy to deform and is durable.
1. Folding guide system
Caimen independently develops practical patented technology to achieve integrated double 90° opening and closing of two gate rows, which is quieter and safer.
2. Safe power transmission system
The folding gate safety power supply transmission system consists of 304 stainless steel hose and Caimen customized wires, which are rust-proof, retractable and can be bent without damaging the wires.
Caimen customized 4-core wire: 99.99% oxygen-free pure copper wire
304 stainless steel hose: The material is 304 stainless steel and is used as wire and cable protection tube for wires, cables, and automation instrument signals. It is mainly used for sensor line protection of precision optical rulers and industrial sensor line protection. It has good softness, corrosion resistance, high temperature resistance, wear resistance, and tensile resistance.
Infrared warning light and voice reminder
The warning light provides important safety functions. It is a high-brightness flash mode reminder when the vehicle enters and exits the switch. The lampshade of the warning light is designed using the diamond principle, with strong light refraction. It is made of PC material, which is hard, shock-proof and drop-resistant. The material is not easy to fade, and is waterproof and dustproof. The voice engineer professionally customizes the warning voice with clear sound quality.
Infrared anti-collision
Infrared transmitting and receiving sensors are set at the corresponding positions on the outer sides of the gate pillars on both sides. When the gate is closing, if people, vehicles or objects pass between the infrared transmitter and the receiver, the gate will stop running and return automatically.
New leakage protection plug
Once the leakage current reaches 10 mA, the power supply will be automatically cut off immediately, and the reaction time is less than 0.1 second. The whole is made of flame-retardant engineering plastic, which is resistant to high temperature and ensures safety.
Digital integrated control system
The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.
New leakage protection plug
Once the leakage current reaches 10 mA, the power supply will be automatically cut off immediately, and the reaction time is less than 0.1 second. The whole is made of flame-retardant engineering plastic, which is resistant to high temperature and ensures safety.
Digital integrated control system
The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.
The motor has a compact structure and stable performance. It has a large starting torque and can adapt to frequent forward and reverse rotation. It has an embedded thermal protection device to extend the service life of the gate opener. It has good self-locking performance and can be manually released to realize manual opening and closing of the gate. It can work normally in a low temperature environment of -20℃.
5 Advantages
1. Soft brake 2. Soft start
3. Motor self-locking 4. Manual clutch
5. Overload protection
Products Can Be Connected to the Intelligent Interactive System

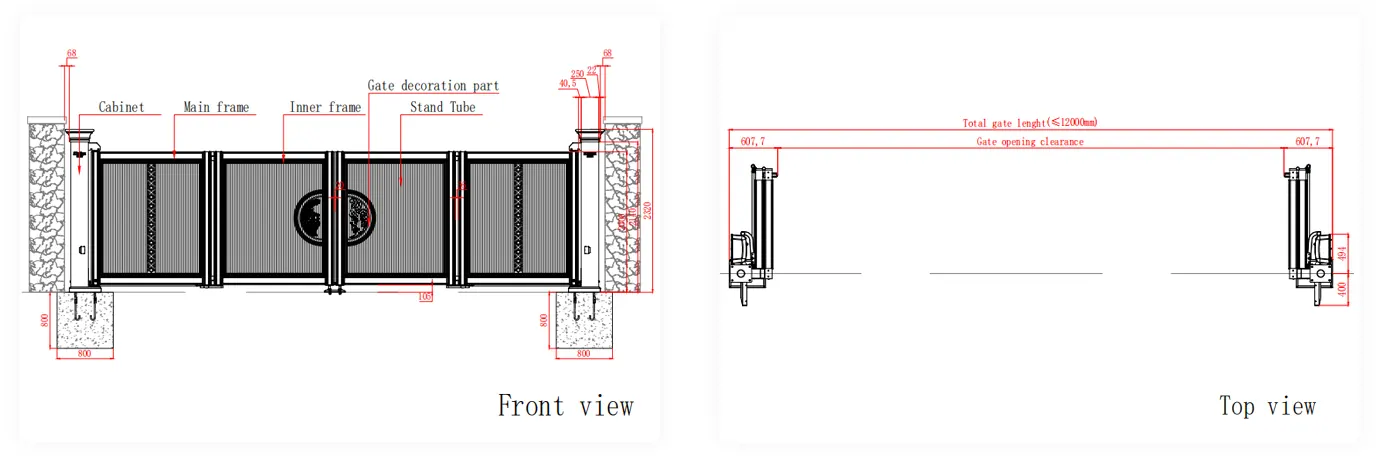

All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
| Name | Cabinet | Main Frame | Inner Frame | Stand Tube | Gate Decoration part |
| Material | 6005-T5 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 |
| Size mm | 250*200* Thickness 4.0 | 128*90* Thickness 3.2 | 110*50* Thickness 1.5 | 47*37* Thickness 1.3 | AL Casting |
| Insulation Grade | B |
| Production Grade | A |
| Surface Treatment | Fluorocarbon powder coating |
| Color | CM-01 gray (customizable) |
| Function Configuration | |||
| Function | Standard/Optional | Function | Standard/Optional |
| Motor Thermal Protection | Standard | Soft Drive Device | Standard |
| Manual Clutch | Standard | Emergency Stop Device | Standard |
| Infrared | Standard | Radio Remote Control | Standard |
| Voice | Optional | Anti-climbing Teeth | Optional |
