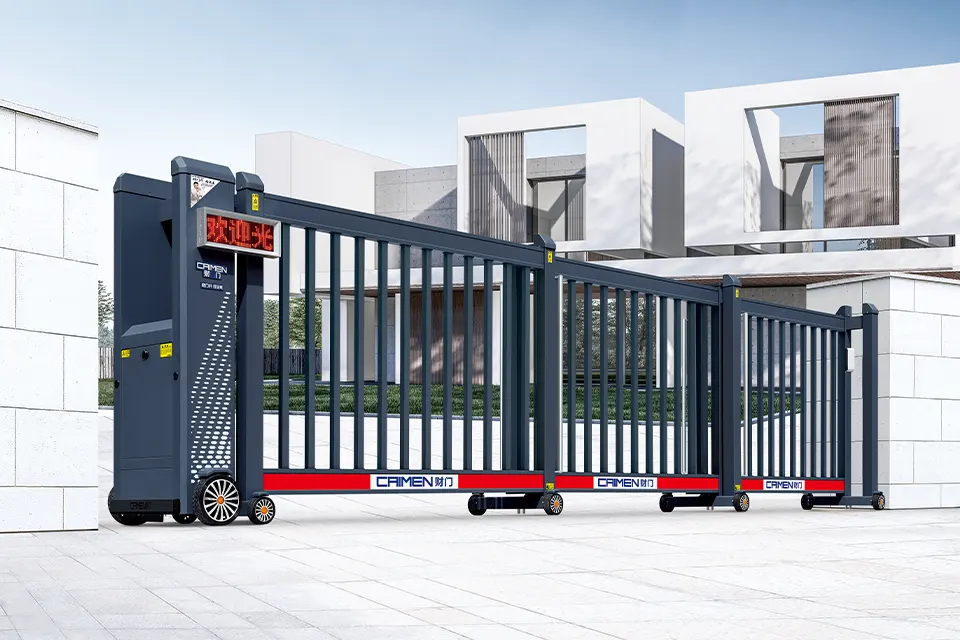

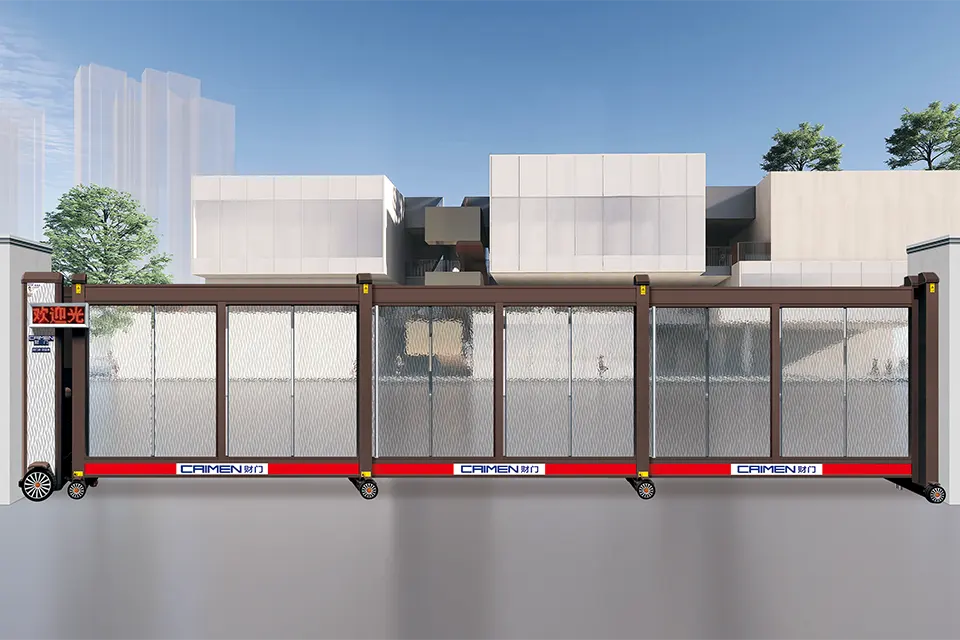

Telescopic Gate Aluminum
Modern schools, hospitals can benefit from the Telescopic Gate as it delivers exceptional durability and flexibility together with safety attributes through its contemporary space-saving design. The gate is made from high-quality aluminum alloy and comes with a telescopic structure that responds to changing space needs and keeps a stylish appearance. The combination of advanced technology and environmentally friendly materials produces this solution, which suits driveways and entrances alongside small spaces.
Key Features
Flexible Structure and Strong Adaptability
This gate system covers up to 14 meters in extent with 1.6 meters in height (adjustable dimensions), which spans across two to six sections equipped with hinges or pulley functions for controlled movement.
Design flexibility enables customization of section quantity along with the dimension and decoration features, which include motifs and ornamentation.
Exceptional Durability and Low Maintenance
The gate utilizes premium aluminum alloy combined with fluorocarbon powder coating that goes through 2-coat dry baking operations to obtain superior corrosion and oxidation defense.
The gate operates through the power of a 220V single motor using a copper pot wheel, which provides stable performance and efficient heat dissipation under extreme conditions down to -35°C.
The simple design of the gate needs little maintenance work when properly maintained. Performed inspections on both the electric control system and gate components leading to enduring operational efficiency.
Enhanced Safety Features
The optional anti-pinch function enables the detection of obstacles during gate closing so that the gate stops or reverses to prevent accidents.
User safety is ensured through the emergency-stopping capability of the gate system.
Wind resistance is enhanced by the wide chassis and its combination with I-beam or aluminum alloy rails.
Space-Saving Design
The telescopic gate has a sliding and folding mechanism that consumes minimal space when compared to regular gates. Such gates suit compact properties because their design allows two-way movement even for gates designed for extended passages.
Electric Control for Convenient Operation
The remote-controlled electric drive system enables ease of operation through numerous interface options that control gate functions.
Smart controls within this system enable connectivity with smart technologies for both remote operations and automatic detection as well as sophisticated complementary features.
The gateway features an operational prompt display screen using a scrolling front-facing display.
Eco-Friendly and Energy-Efficient
Intelligent controls and an efficient electric system create an energy-saving system throughout the gate design.
The gate manufacturing process includes sustainable materials that satisfy present-day sustainable building standards.
Applications
- Villa entrances and driveways
- Commercial properties with limited space
- The system provides improved access control needs for secure locations.
Optional Add-ons
The security system includes added lock sets and alarm systems to provide higher defense capabilities.
The system enables smart home integration for users who need remote monitoring access through smart home management systems.
Professional designers are available to provide architectural-customized finishes along with coloring choices for decorative elements that match any building style.
Nano-level wear-resistant wheel
The newly upgraded nano-level wear-resistant large wheels combined with the all-cast aluminum hubs make the overall style full of grandeur, combining excellent performance and beautiful appearance.
1. Ultra-wide four-wheel balancing system
The gate chassis is wide and has good wind resistance. The gate chassis is 680 width, which is more stable and has stronger wind resistance.
2. Windproof design, high safety
The track adopts all-aluminum one-time molding technology, which is durable. Or you can choose solid galvanized steel track, which can bear 120 tons of vehicle weight.
The track slot fits perfectly with the wind-resistant hook, and the wind resistance performance is improved by 8 times
The guide card can be automatically adjusted up and down to ensure smoother operation of the gate body.
The trackless gate uses magnetic scanning correction to ensure that the gate body runs straight, reduce the friction coefficient, and enhance the service life.
The gate safety power supply transmission system consists of a chain, a wire bracket, a custom-made wire from Caimen, and a nylon wheel to ensure that the wires are not disconnected, worn, or leaked.
1. Chain
Anti-aging tests.
2. Wire bracket
Stainless steel 1500 degrees Celsius one-piece molding.
3. Nylon protection wheel
Protect the wires from moving and non-conductive.
4. Caimen customized 3-core wire
99.99% oxygen-free pure copper wire.
The gate safety power supply transmission system consists of a chain, a wire bracket, a custom-made wire from Caimen, and a nylon wheel to ensure that the wires are not disconnected, worn, or leaked.
1. Chain
Anti-aging tests.
2. Wire bracket
Stainless steel 1500 degrees Celsius one-piece molding.
3. Nylon protection wheel
Protect the wires from moving and non-conductive.
4. Caimen customized 3-core wire
99.99% oxygen-free pure copper wire.
Anti-collision airbag
In the running state, when the airbag is hit by a person or an object, the anti-collision pressure wave is sensed and a signal is transmitted to the main control board through the wireless transmission module. After the main control board receives the signal, the gate body can stop automatically.
1. Infrared anti-collision
Infrared transmitting and receiving sensors should be installed at the corresponding positions of the gateposts at both ends of the gate opening. When the gate is closing, if people, vehicles or objects are detected passing between the infrared transmitter and the receiver, the gate will stop running and return automatically.
2. Infrared anti-climbing
10 seconds after the gate is closed, if a person or object passes between the infrared transmitting and receiving sensors at the top of the gate, the alarm device will sound an alarm.
1. Independently developed leakage switch
Ensure safety. Leakage protection safety protection function.
2. Emergency stop device
In the running state, in case of emergency, the power supply can be quickly cut off through the emergency stop switch to achieve emergency stop and ensure safety.
3. Original design with anti-pinch function
When the gate is open and in operation, if the anti-pinch device on the inner side of the gate is pressed by a person or an object, the gate will stop operating immediately.
4. Digital integrated control system
The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.
1. Independently developed leakage switch
Ensure safety. Leakage protection safety protection function.
2. Emergency stop device
In the running state, in case of emergency, the power supply can be quickly cut off through the emergency stop switch to achieve emergency stop and ensure safety.
3. Original design with anti-pinch function
When the gate is open and in operation, if the anti-pinch device on the inner side of the gate is pressed by a person or an object, the gate will stop operating immediately.
4. Digital integrated control system
The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.
Special motor Aluminum alloy precision die-cast motor housing, good heat dissipation performance; compact structure, stable performance; large starting torque, can adapt to frequent forward and reverse rotation; embedded thermal protection device to extend the service life of the door opener; good self-locking performance, can be manually released to realize manual opening and closing of the door; normal operation in low temperature environment of -35℃.
7 Advantages
1. Frequency conversion 2. Soft brake
3. Soft start 4. High temperature protection
5. Motor self-locking 6. Manual clutch
7. Overload protection
Products Can Be Connected to the Intelligent Interactive System

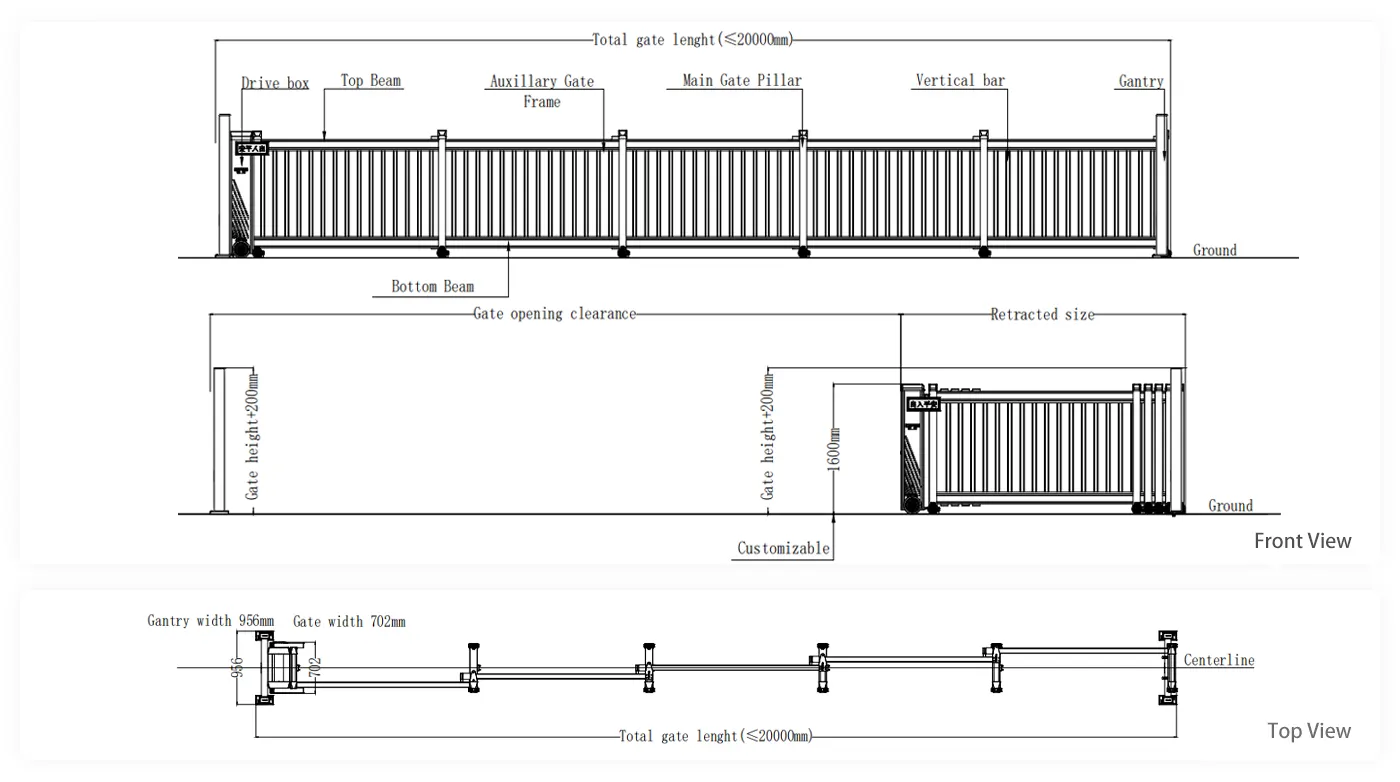

All dimensions are in mm. The schematic diagram takes model CMZM as an example for reference.
| Name | Drive Box | Top Beam | Bottom Beam | Auxillary Gate Pillar | Main Gate Pillar | Auxillary Gate Frame | Vertical Bar | Gantry |
| Material | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 |
| Size mm | 280*80*Thickness 3.0 | 122*66*Thickness 2.5-3.0 | 60*60*Thickness 1.0 | 80*90*Thickness 2.0 | 60*25*Thickness 1.0 | 47*37*Thickness 0.9 | 127*83*Thickness 2.5 | |
| Insulation Grade | B |
| Product Grade | A |
| Surface Treatment | Fluorocarbon powder coating |
| Product Color | CM-01 Gray (Color support customization) |
| Function Configuration | |||
| Intelligent function | Standard / Optional | Intelligent function | Standard / Optional |
| Motor Thermal Protection | Standard | Soft drive device | Standard |
| Manual Clutch | Standard | Emergency stop device | Standard |
| Scrolling Display | Standard | Radio remote control | Standard |
| Anti-collision Airbag | Optional | Gantry | Optional |
| Infrared Alarm | Optional | Anti-pinch | Optional |
| Anti-climbing Teeth | Optional | Voice Function | Optional |
