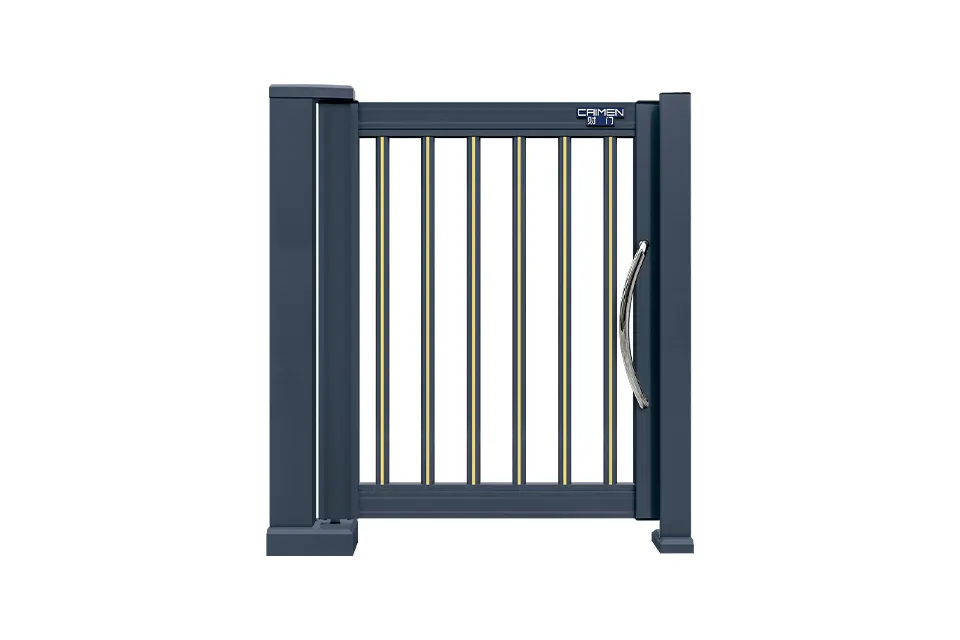

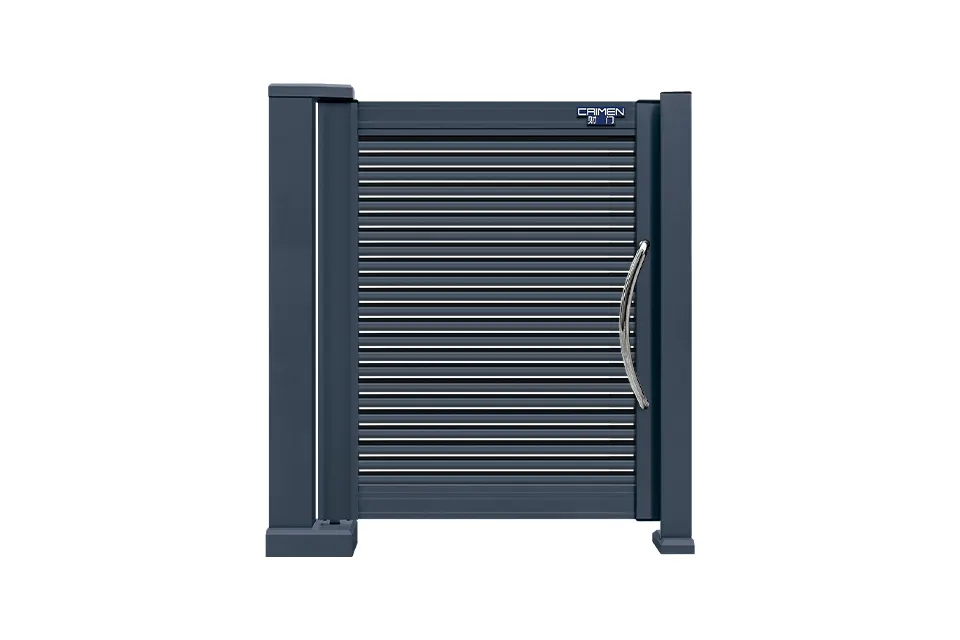

Villa Side Gate

Modern villas obtain sophisticated security access through the Villa Side Gate, which unites modern design elements with state-of-the-art technological solutions. This design achieves three important features: user-friendly operation, long-lasting performance, and safety protection, which makes it perfect for entrance points beside houses, vehicle parking spaces, or gardening areas.

Key Features:

Mortise and Tenon Assembly Structure

The product features fast assembly and disassembly capabilities, which provide both rapid installation together with easy maintenance needs.

Users can enjoy comfortable operation of the gate leaf through its functionality, which extends from 90 degrees to 180 degrees and enables versatile use.

Built-In Motor

The built-in motor system both improves gate appearances and achieves reliable safe performance.

Reliable Operation

The system uses an external remote control as well as manual control box operation for effortless use.

The control box communicates instructions to the electrical box through wired transmission, which prevents communication interference and building refraction disturbances.

The system uses open/close limit sensors that trigger the gate to stop exactly at the designated positions, thus allowing accurate and timely positioning.

Safety and Anti-Theft Features

The reduction box with worm gear mechanism automatically locks itself when the gate becomes motionless, which deters unauthorized persons from breaking into the area.

Leakage Protection

The leakage protection feature provides security to control systems by protecting them from overcurrent, overvoltage, and grounding faults to maintain system reliability.

Applications:

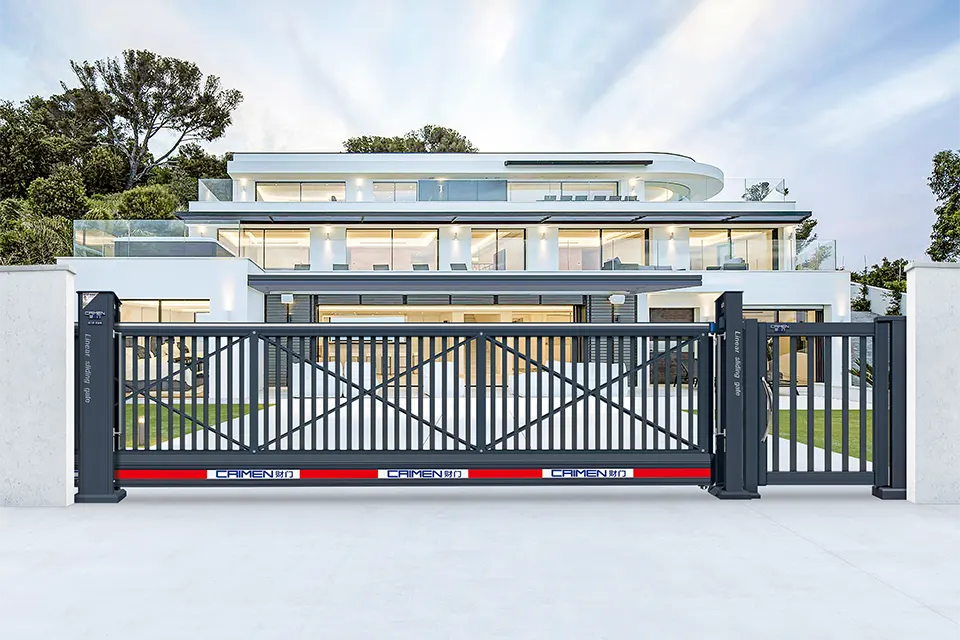

• Side entrances to villas
• Driveways and private access points
• Garden or backyard enclosures

Optional Add-ons:

• The system supports intelligent connection to smart household controls that enable remote observing and handling through mobile applications.
• This product features specific design options that let you select from diverse finish options as well as decorative patterns which match the villa aesthetic.
• The additional system components provide both lock mechanisms and alarm systems that boost protection levels.

The Villa Side Gate combines practicality with safety measures while presenting stunning contemporary design elements that create a dependable villa access point. The product provides advanced security features combined with durable construction materials for both security and extended operational duration.

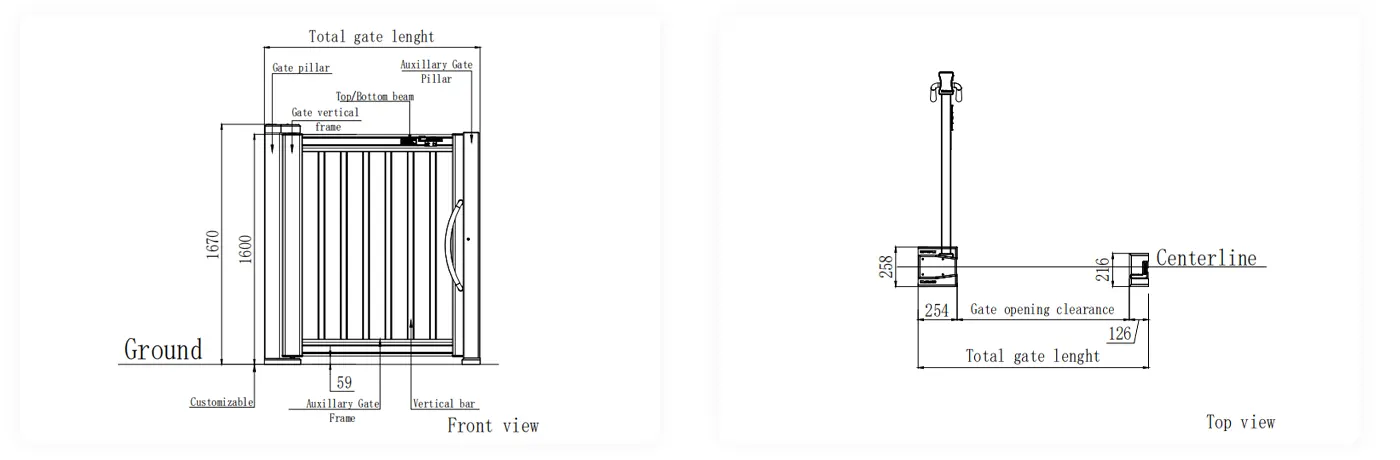

The innovative structure of the top and bottom axis of the CAIMEN side gate makes the gate structure more simple and beautiful, and can achieve an opening and closing angle of 90°-180°.

1. Infrared anti-collision

Infrared transmitter and receiver sensors can be installed at the corresponding positions of the gateposts at both ends of the gate opening. When the gate is closing, if a person, vehicle or object is detected passing between the infrared transmitter and the receiver, the gate will stop running and return automatically.

2. Rebound after encountering resistance

When the gate is closing, if a person or object hits the gate row during closing, the motor receives this signal and sends an obstruction command to the safety system, and the gate will open automatically to avoid damage to people or objects.

Leakage switch

When an emergency stop occurs, the gate motor short-circuits, and the leakage switch plays a certain role to avoid damage to people or objects.

Digital integrated control system

The 10th generation digital integrated control system strictly follows semiconductor manufacturing processes such as oxidation, photolithography, diffusion, epitaxy, and aluminum evaporation. It integrates all the semiconductors, resistors, capacitors and other components and the connecting wires between them required to form a circuit with a certain function on a small piece of silicon wafer. The speed is 5 times faster than the previous generation, and it can be better compatible with various smart devices and realize the necessary equipment for smart AI interaction.

Leakage switch

When an emergency stop occurs, the gate motor short-circuits, and the leakage switch plays a certain role to avoid damage to people or objects.

Digital integrated control system

The 10th generation digital integrated control system strictly follows semiconductor manufacturing processes such as oxidation, photolithography, diffusion, epitaxy, and aluminum evaporation. It integrates all the semiconductors, resistors, capacitors and other components and the connecting wires between them required to form a circuit with a certain function on a small piece of silicon wafer. The speed is 5 times faster than the previous generation, and it can be better compatible with various smart devices and realize the necessary equipment for smart AI interaction.

Intelligent engine drive system

Intelligent special motor
Compact structure, stable performance; large starting torque, can adapt to frequent forward and reverse rotation; embedded thermal protection device, prolong the service life of the gate opener; good self-locking performance, can manually release the self-locking to realize manual opening and closing of the gate; normal operation in low temperature environment of -35℃.

6 Advantages

1. Brushless                         2. Soft brake
3. Deceleration function     4. High temperature protection
5. Motor self-locking           6. Overload protection
