Road Blocker

1. Control System: PLC Controls programming commands
2. Control Mode: Wireless remote control and wire control
3. Minimum Passing Pressure: Container trucks under 220 tons can pass
4. Rated Voltage: AC380V 50Hz
5. System Power: 3.75KW
6. Power Unit: Electro-hydraulic drive
7. PLC Built-in Encryption System: It can be encrypted
8. Rising Time: ≤1-4S
9. Descending Time: ≤1-4S
10. Working Temperature: (-30℃~75℃) (Low temperature device installed -50~75℃)
11. Material: Q235

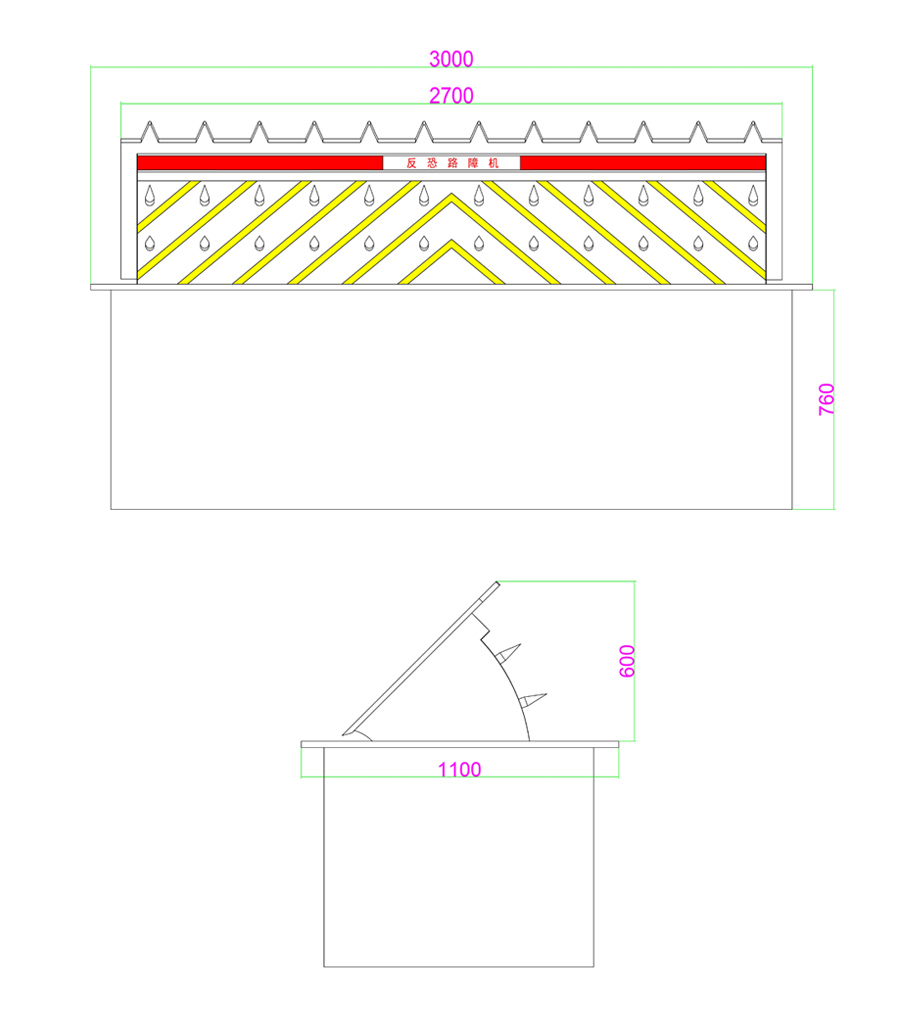

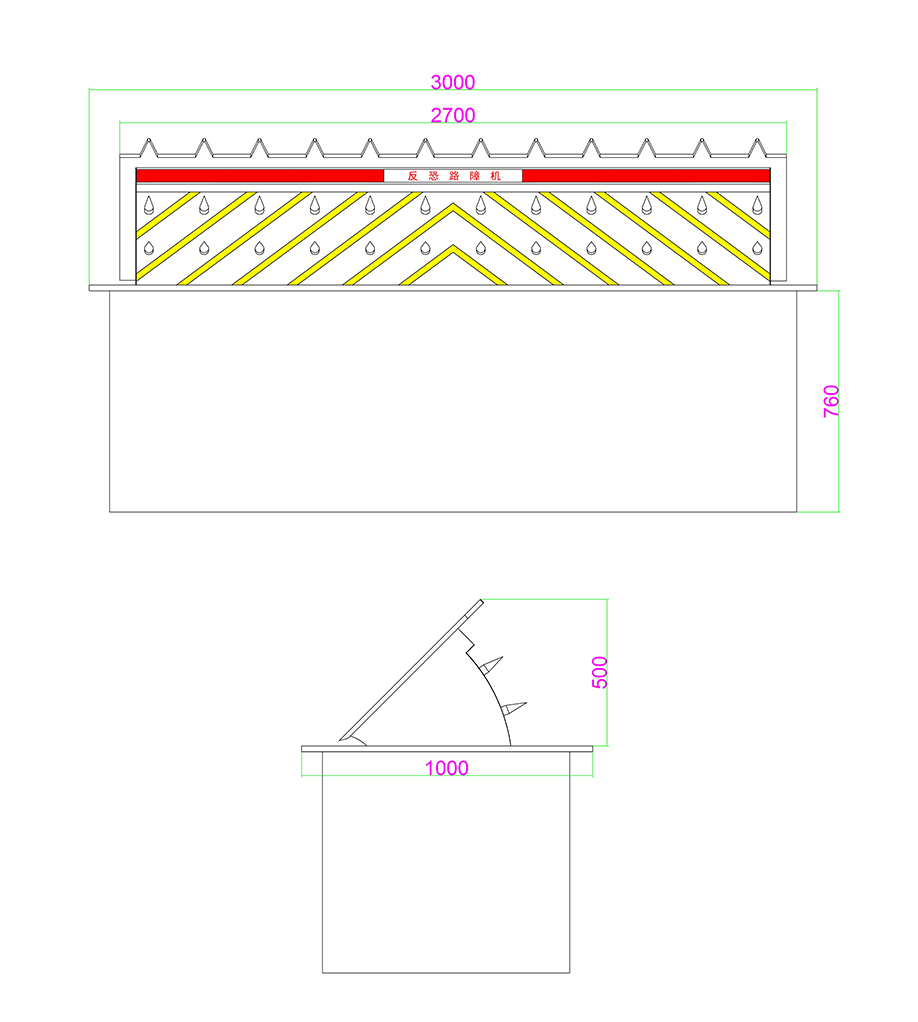

12. Lifting Height: 500mm and 600mm are optional
13. Standard Thickness Of Panel: 16mm, 20mm and 25mm are optional
14. Spine Length: 350mm

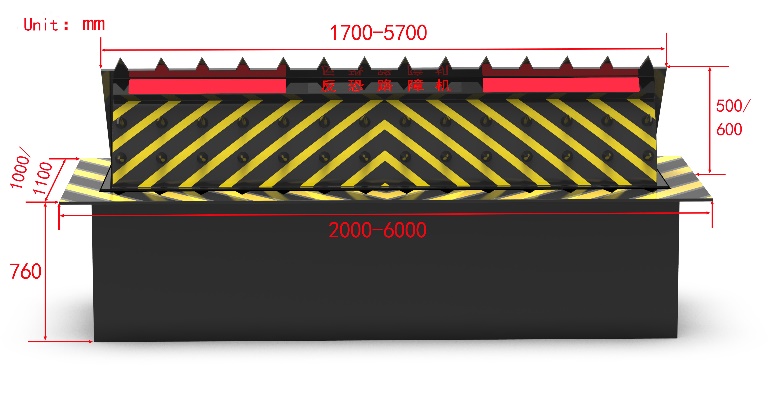

15. Box Size: (2000-6000)*1000*760mm
16. LED Warning Light: Monochrome and multicolor are optional
17. Reflective Film: 3M diamond grade
18. Linkage Interface: Traffic lights, infrared, ground sense, license plate recognition, etc
19. In Case Of Power Failure: It can be raised and lowered manually
20. Protection Grade: IP68
21. Remote Control Range: 50-100m
22. Noise During Device Operation: ≤ 60dB

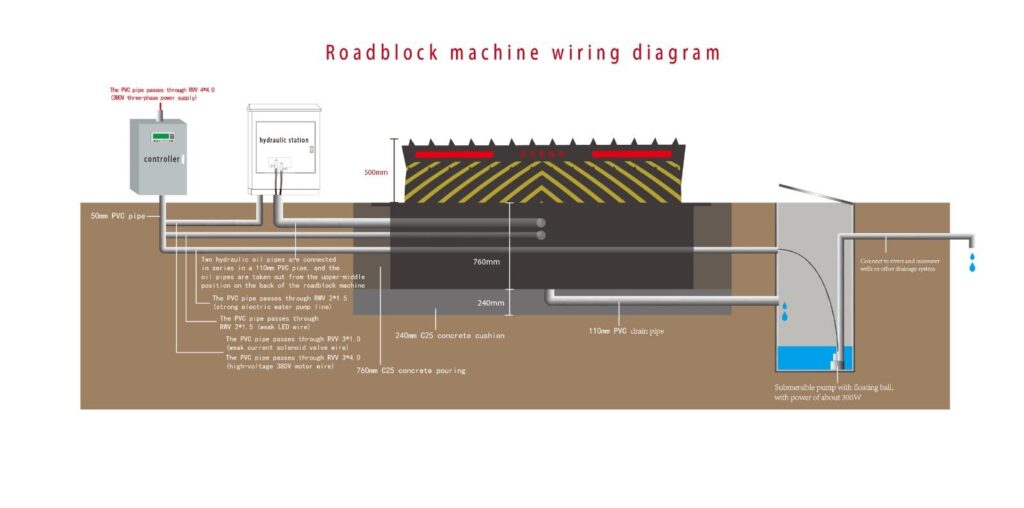

Road Blocker Wiring Diagram
