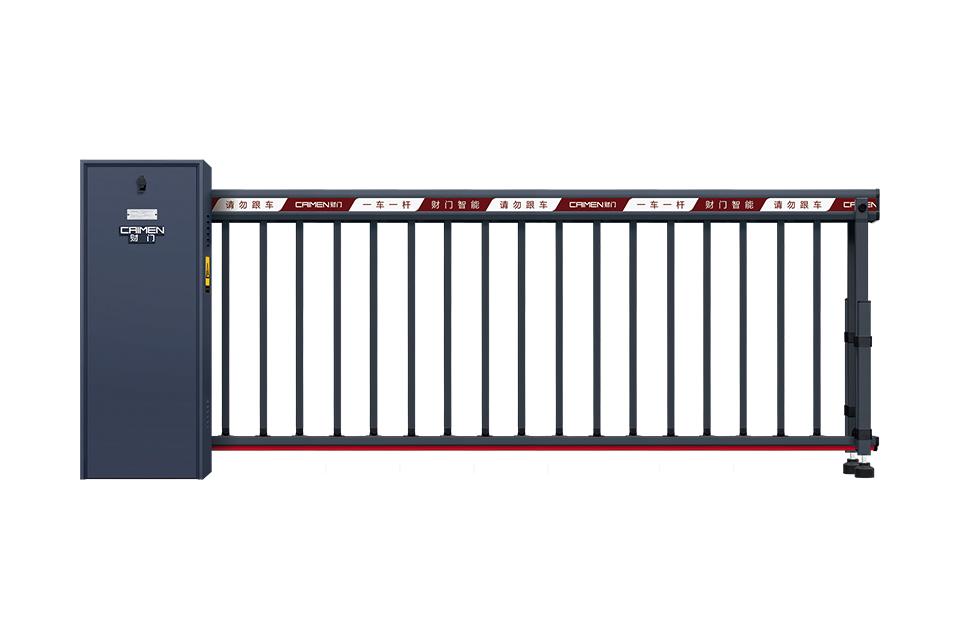

Fence Barrier Gate DZ07
The fence barrier gate is designed for enhanced access control and safety management. Compared with traditional boom barriers, it features a fence-style arm that effectively prevents unauthorized access from pedestrians and vehicles. With stable performance and fast operation, it is widely used in parking systems, industrial sites, and secured entrances.
/
Model: Fence Barrier Gate DZ07
Cabinet Dimensions: 460×300×1200mm(L×W×H)
Max Arm Length: ≤6000mm (including cabinet)
Operating Speed: 5–10s (depending on arm length)
Surface Treatment: Fluorocarbon powder coating
Custom Styles: Color , logo can be customized
Features & Benefits
- Fence-style barrier arm for added security
Prevents pedestrians and vehicles from passing underneath, improving overall access control - Safer than traditional boom barriers
Provides both traffic management and physical blocking in one system - Durable steel construction
Made from high-strength carbon steel for long-term outdoor use - Weather-resistant coating
Fluorocarbon powder coating ensures excellent corrosion resistance - Adjustable operating speed
Different speed ranges available depending on arm length and project requirements - Smooth and reliable operation
Stable structure reduces vibration and ensures consistent performance - Low noise design
Suitable for residential and commercial environments - All-weather performance
Operates reliably in temperatures from -25°C to 70°C - Wide range of applications
Ideal for parking lots, factories, logistics parks, residential communities, and toll stations
Material Specification
Model: Fence Barrier Gate DZ07
Max Arm Length: ≤6000mm (including cabinet)
Arm Height: Max Arm Height 1092mm
Cabinet Dimensions: 460×300×1200mm(L×W×H)
Specifications: Top beam: 110×105×1.8mm, Bottom beam: 65×34×1.0mm, Vertical bar: 25×17×0.8mm
Cabinet Material: The main body is made of high-strength carbon steel plates
Standard Color: The special process of two-bake and two-bake fluorocarbon powder spraying-Dark grey
Operating Speed: 5–10s (depending on arm length)
Operating Voltage: 24V
Motor Power: 140W
Rated Power: 140 – 200W
Operating Temperature: –25℃ to +70℃
Storage Temperature: –35℃ to +75℃
Operating Humidity: <90%, no condensing (under room temperature)
Noise Requirement: <65dB
