Cantilever Gate Solutions for Rail-Free Secure Access

A Cantilever Gate is a sliding gate that runs above the ground with no rail in the driveway. The gate leaf is supported by a side structure, so it glides smoothly even when the pavement is uneven or dirty. No track in the ground means fewer jams from sand, mud, ice, or snow. For industrial parks, logistics hubs, and commercial entrances, this rail-free design can be a real advantage. But how do you make it safe, smart, and reliable enough for daily heavy use?

Rethinking Perimeter Security with Cantilever Gate Design

Most perimeter projects do not start on a perfectly level, empty site. They begin with tight yard layouts, existing buildings, heavy truck traffic, and strict safety rules. In these conditions, a traditional ground-rail sliding gate can quickly become a maintenance problem.

A Cantilever Gate removes the weak link: the rail in the ground. The gate leaf is carried by a cantilever structure, so it travels above the surface without relying on a track that can clog or deform. Dust, sand, mud, standing water, ice, or snow that would jam a ground rail no longer stop the gate from moving. For industrial parks and logistics yards, this means fewer interruptions and more predictable operation.

Typical pain points that CAIMEN addresses with Cantilever Gate solutions include:

•Rail contamination caused by dirt, gravel, mud, ice, or snow

•Limited space at the entrance line and along the fence

•Frequent vehicle movements with different wheelbases

•High wind loads on large, solid or semi-solid panels

•Tightening safety and compliance requirements

Because the Cantilever Gate travels parallel to the fence or building line, it keeps the apron area clear for vehicles and pedestrians. Turning space, loading zones, and parking bays remain usable instead of being blocked by a gate leaf that swings outward. On compact sites where every metre counts, this space efficiency becomes a real advantage.

How CAIMEN Builds a Trackless Cantilever Gate for Rail-Free Access

From CAIMEN's perspective, a Cantilever Gate is not just a moving panel and a motor. It is a coordinated system of structure, drive, sensing, and safety that has to work together day after day, often in harsh weather and demanding duty cycles.

• Trackless Structure and Mechanical Stability

The heart of the design is the cantilever support system. By eliminating ground rails, CAIMEN removes one of the most common failure points in conventional sliding gates. A well-coordinated set of mechanical parts keeps the gate running in a straight, controlled line:

•Correction whee - Stabilises side-to-side movement and cuts down vibration, helping protect critical components from premature wear.

•Tail lever assembly - Built with durable aluminium alloy profiles and dual fixing points so the gate frame stays rigid and resists long-term sagging.

•Inner guide wheel set - Uses nylon wheels, precision-formed sheet metal, and high-grade bearings to lower friction and keep operation quieter.

•Limit sensing system - Monitors gate position accurately so the drive stops at the right time.

Together, these elements allow the Cantilever Gate to stay aligned even on sloped, uneven, or partially obstructed surfaces. Because there is no ground track to clean, operators spend far less time dealing with dirt build-up, ice removal, or damaged rails, which directly lowers maintenance effort and cost.

• Integrated Safety and Smart Control

Modern perimeter security is about people as much as property. CAIMEN designs every Cantilever Gate with layered safety functions that work hand in hand with access control and monitoring systems.

The system's main protection features are:

•Infrared anti-climbing function - After closure, any person or object passing through the infrared path between the transmitter and receiver within the preset time triggers an alarm condition.

•Anti-collision / anti-pinch logic - When the gate is closing and the infrared field senses an obstruction, the control unit issues an alarm, stops the movement, and reverses the gate. A built-in safety airbag and pressure-sensitive edge on the front profile help detect impact quickly.

•Emergency stop device - For critical situations, operators can trigger the emergency stop switch to isolate the drive power and stop the Cantilever Gate without delay.

The area under the gate uses a safety-oriented drive and power layout, combining a tailored leakage protection device, multi-core copper conductors, and nylon protection wheels. This arrangement improves power consistency, boosts wear resistance, and helps guard against electrical leakage.

At the control level, a CAIMEN digital integrated control platform ties all functions into one smart system. The latest-generation controller offers fast processing and supports a wide range of smart devices and communication interfaces. This provides the foundation for linking the Cantilever Gate to access control systems, licence plate recognition, remote monitoring centres, and smart-building or smart-city platforms.

• Drive System Built for Long-Term Duty

In daily operation, the drive system is the workhorse of the Cantilever Gate. It must handle frequent start-stop cycles, forward and reverse movement, and changing environmental conditions without becoming a weak point.

CAIMEN's approach to motor and gearbox engineering centres on stability and service life:

•Brushless motor system - Provides controlled deceleration and soft end-of-travel braking, reducing wear on the drive train.

•Temperature monitoring and cut-off - Protects the drive when duty cycles are long or loads are high.

•Strong starting torque - Handles oversized gate structures and wind loads without stalling.

•Integrated self-locking - Holds the closed position firmly, with a manual clutch release for emergency manual operation.

•Overload defence - Helps shield internal mechanical and electrical components from stress beyond design limits.

The drive body uses high-precision aluminium alloy die-casting to enhance cooling and keep the footprint small. Rated for operation down to about -35 °C, it is well suited to harsh, outdoor logistics and perimeter applications.

Why Choose CAIMEN for Cantilever Gate Projects?

For investors, operators, and system integrators, selecting a Cantilever Gate supplier has direct impact on safety, reliability, and total cost of ownership.

• Engineering Support and Lifecycle Value

CAIMEN's engineering teams work to align each Cantilever Gate with the real conditions of the site instead of treating every project as identical. Engineering and design support often includes:

•Evaluating gradients, drainage paths, and existing paving to position footings and supports accurately

•Setting clear opening dimensions, safety margins, and crossing points for vehicles and pedestrians

•Integrating with access systems, CCTV networks, fire interfaces, and parking or logistics software

•Helping choose colours, infill configurations, and style elements that complement the site

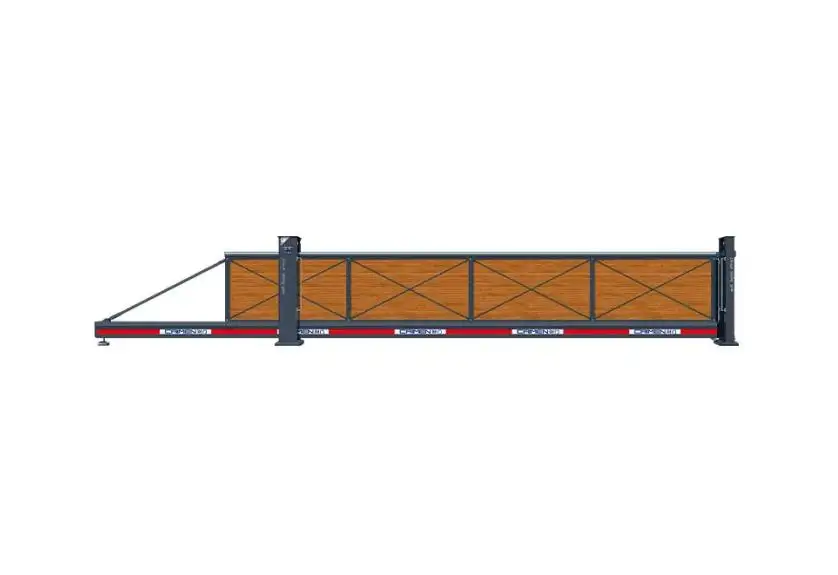

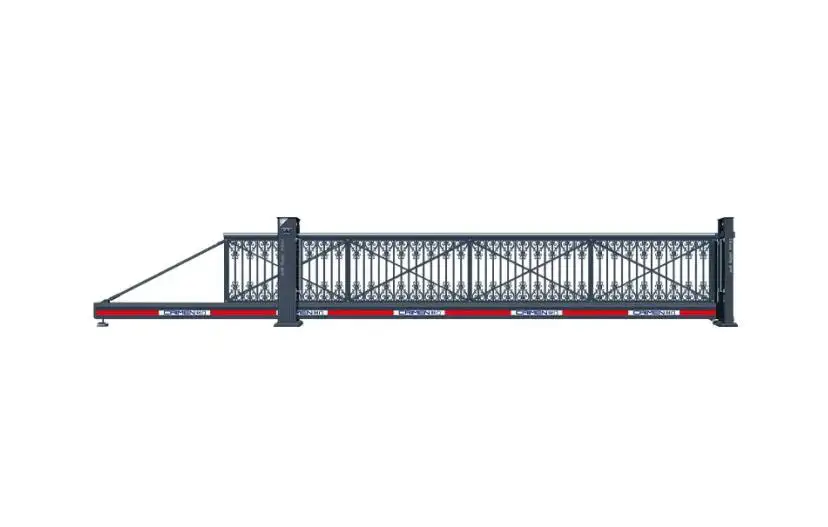

With its straightforward, modern lines, the Cantilever Gate fits comfortably into industrial parks, distribution hubs, commercial campuses, and high-end residential drives. A wide selection of coatings and panel styles allows it to perform as a security device while contributing to the building's façade design.

Once the system is in place, maintenance routines remain straightforward. Without ground rails, operators focus on periodic inspection of rollers, cantilever supports, safety devices, and control functions rather than on constant track cleaning. This matches industry priorities: fewer manual interventions, more stable uptime, and clearly documented safety measures.

From the first concept sketch to full operation, CAIMEN's goal is simple: to deliver Cantilever Gate solutions for rail-free secure access that respond to real site constraints and long-term business objectives.

For industrial parks, logistics centres, commercial facilities, or high-security sites looking to move away from ground-rail systems, CAIMEN offers engineered Cantilever Gate solutions tailored to demanding environments. To discuss your perimeter upgrade, request technical input, or plan a new project, contact the CAIMEN team for a detailed consultation and proposal.
